STATE OF THE ART EQUIPMENT
Surface Mount Technology (SMT)
- 1 Universal AC-30S Automated Pick and Place (34,000 PPH, 01005 capable/.2mm pitch)
- Universal Advantis V1-07 Pick and Place (15,300 PPH, 0201-6” square)
Screen Printing/Dispensing
- 1 Speedprint SP710avi Automatic Inline Stencil Printer with dual-dispense heads
- 1 Elite 4500 Stencil Printer
Reflow/Wave Soldering (Pb & ROHS)
- 1 Vitronics XPM3i 820 Reflow Oven (8 heat zones, 2 cooling)
- Nordson-Dage Novo Selective Solder
- 1 Hollis TDL 16″ Dual Wave Solder
- Pace Thermoflo Split Vision Rework System
Inspection Technologies
- 1 Nordson Yestech FX 940 AOI (3D INSPECTION)
(w/dim. measurement and 100% solder joint inspection) - 1 Nordson Yestech BX AOI (5MP, 12 micron pixel size, 1 top & 4 side view cameras)
- 1 Glenbrook Jewel Box 70T X-Ray, 2000x
- 1 BGA-300 Vision Inspection Tool 70x-140x magnification
Lead Forming
- 2 APS F1 & LF2 Axial Lead Formers
- 2 APS ICF Dip Formers and Cutters
- 1 APS RTV Radial Lead Cutter
Cleaning
- Electrovert Aquastorm 50
- Aqueous Technologies Trident III
- Aqueous Technologies AQ400-CL
Factory & Material Control
- EVO ERP System
- OC Scan CCX – X-Ray Component Counting System
Functional, ICT, and FP Testing
- ICT and Flying Probe (offered with 3rd party partner)
- Oscilloscopes, Frequency Counters, Multi-meters, Power Supplies, Hi POT, and Custom Fixtures
Miscellaneous
- 1 Schleuniger CS9000 Wire Processor
- VPD3-1M PCB Separator
- JBC, Weller, and Pace Rework Stations and Soldering Irons
- Wire Wrap, Heat Guns, Arbor Press, Crimp Tools, etc.
![Bay 4 2019 sm Equipment List 1](https://i0.wp.com/www.tristateelectronicmfg.com/wp-content/uploads/2019/12/Bay-4-2019-sm.jpg?fit=1229%2C691&ssl=1)
Universal AC-30S Automated Pick and Place
![Bay 4 to Front 2019 sm Equipment List 2](https://i0.wp.com/www.tristateelectronicmfg.com/wp-content/uploads/2019/12/Bay-4-to-Front-2019-sm.jpg?fit=1229%2C691&ssl=1)

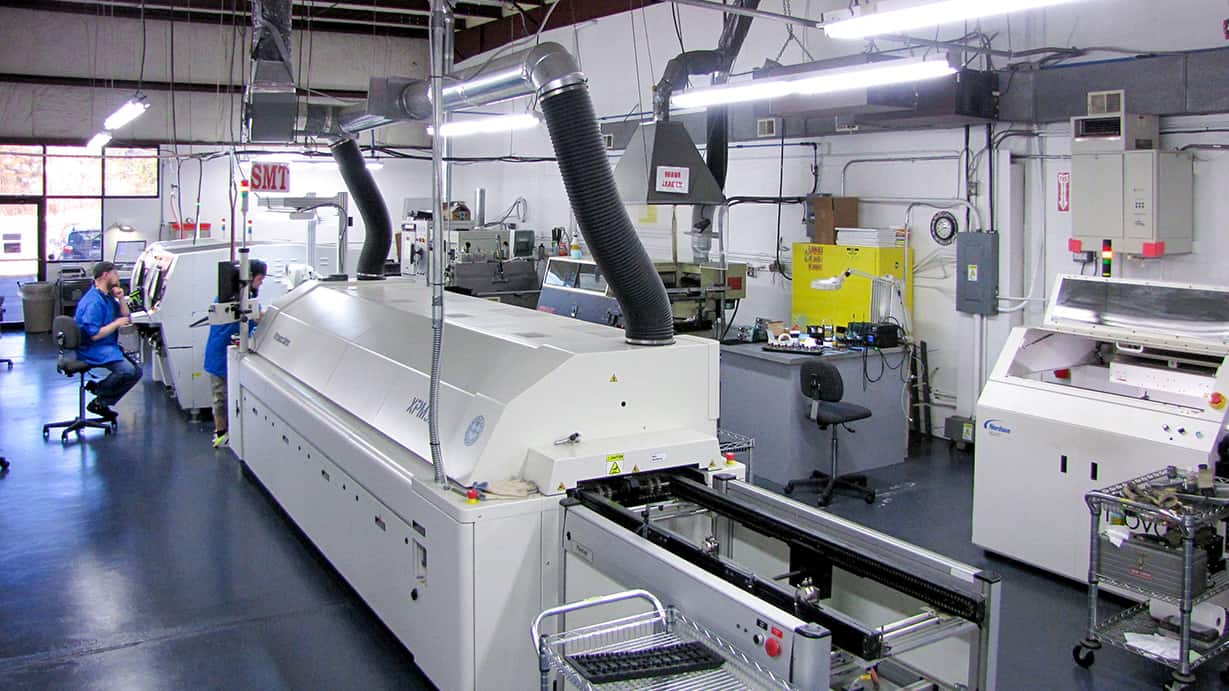

SMT Line 1
![Nordson Novo Selective 2019 sm Equipment List 3](https://i0.wp.com/www.tristateelectronicmfg.com/wp-content/uploads/2019/12/Nordson-Novo-Selective-2019-sm.jpg?fit=887%2C681&ssl=1)

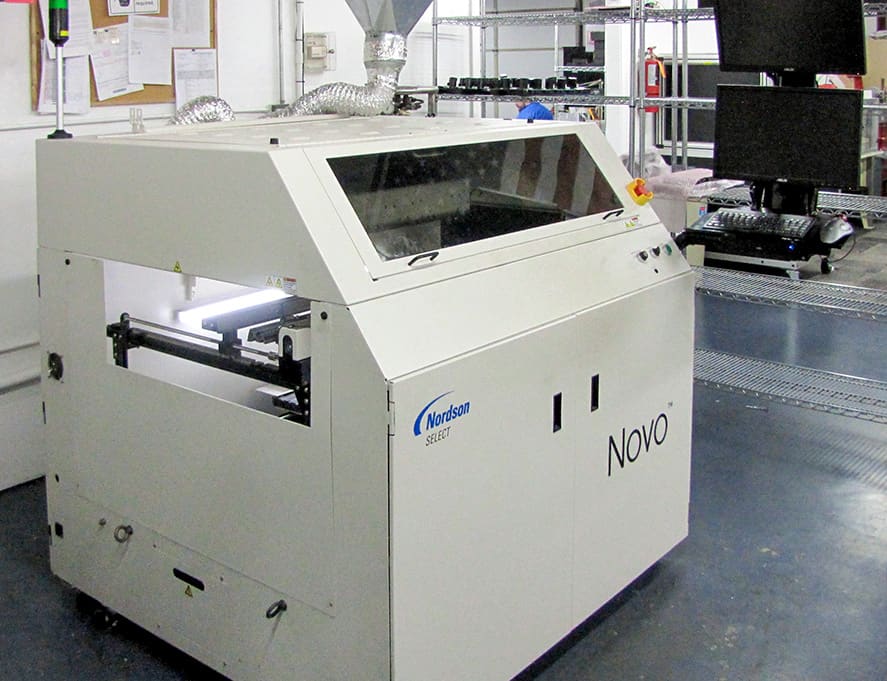

Nordson Novo Selective
![011 Equipment List 4](https://i0.wp.com/www.tristateelectronicmfg.com/wp-content/uploads/2016/05/011.jpeg?fit=1920%2C1080&ssl=1)

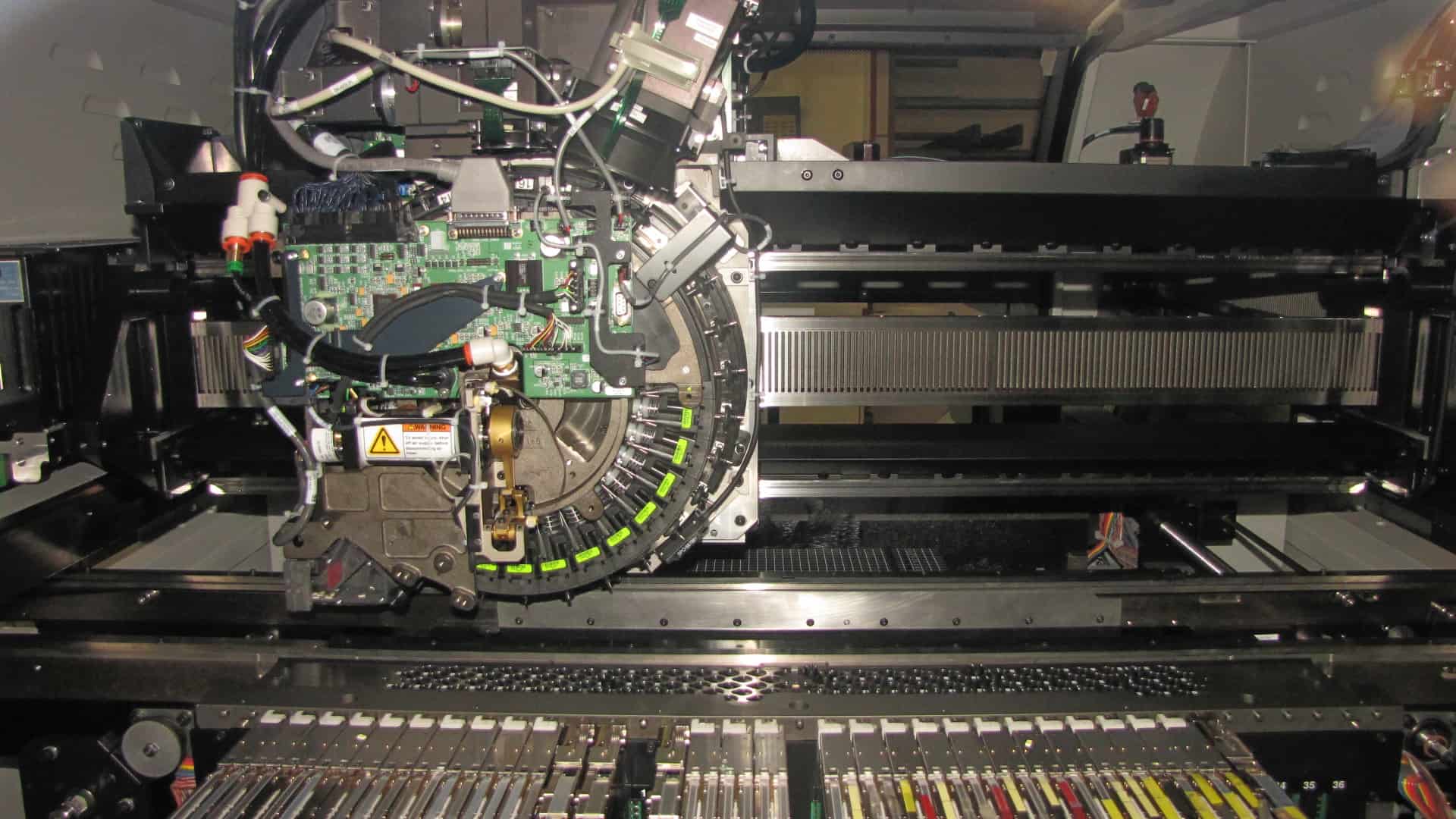

AC 30 Head
![003 Equipment List 5](https://i0.wp.com/www.tristateelectronicmfg.com/wp-content/uploads/2016/05/003-scaled.jpg?fit=2560%2C1748&ssl=1)

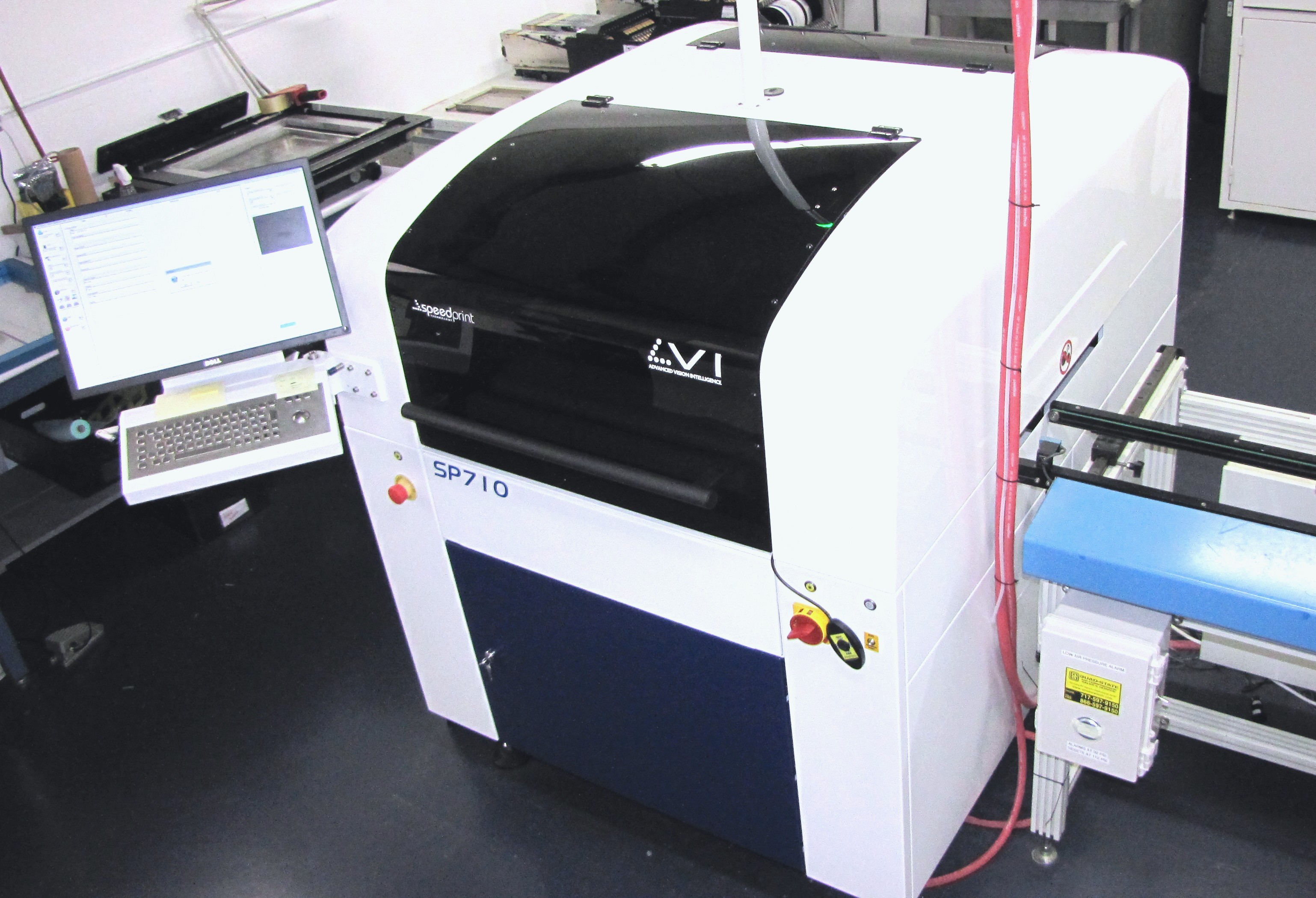

Speedprint SP710avi Stencil Printer
![OC Scan 2019 sm Equipment List 6](https://i0.wp.com/www.tristateelectronicmfg.com/wp-content/uploads/2019/12/OC-Scan-2019-sm.jpg?fit=687%2C1171&ssl=1)

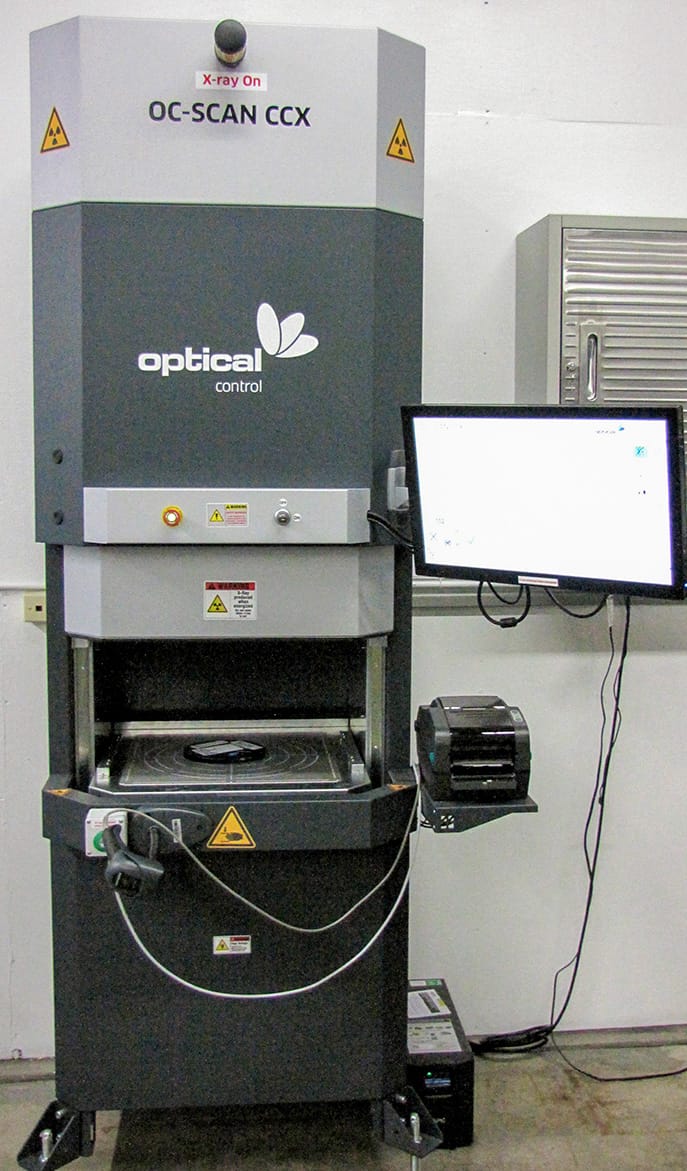

X-Ray : OC Scan CCX
